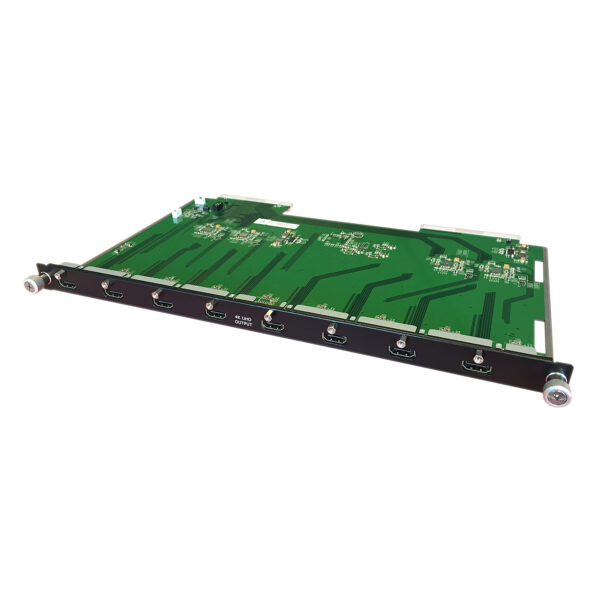

Lindy 8 Port HDMI 1.4 Output Modular Board

8 x HDMI Type A Output Female Connectors
Input and output modules can be mixed and added in increments of 8
Supports video resolutions up to 4kx2k@60Hz 8 bit 4:2:0
Supports multiple audio signals from Stereo audio to lPCM 7.1Ch & DTS-HD Master Audio Transmission
2 Year Warranty

Thank you for purchasing from the LINDY Modular Matrix range of products.

This range of products is designed to allow you to create a matrix with 8, 16 or 32 input and output ports.

The input ports can be a choice of HDMI, DVI or VGA while the output ports can be HDMI, DVI or C6 HDBaseT. Any of the inputs can be combined with any of the outputs to create a UHD 4Kx2K@60Hz 8 bit 4:2:0 display over distances of up to 100m.

The modular design provides the ultimate in flexibility for audio and video distribution as a matrix, convertor or an extender in retail product demonstration, training and public display application in schools, pubs etc.

The 8 Port 4K HDMI Output Modular Board is designed for use with 38250, 38251, 38252 Chassis systems and 38253, 38255, 38256, 38257 & 38259 range of modular boards.

Key features

• 8 x HDMI Type A Output Female Connectors
• Input and output modules can be mixed and added in increments of 8
• Supports video resolutions up to 4kx2k@60Hz 8 bit 4:2:0
• Supports multiple audio signals from Stereo audio to lPCM 7.1Ch & DTS-HD Master Audio Transmission

Datasheets & manuals

• leaflet
